Solar Bollard

Solar Bollard 02
Solar Bollard 03

Product Information

The Solar Bollard AST-1660 is leading edge design, making it a standalone bollard with many key features allowing for huge savings on installation for architectural and commercial pathway / walkway applications.

The protective dome is designed to withstand both vandalism or extreme weather conditions. Panel array is a blended design – enabling the AST-1660 to fit within any surrounds aesthetically.

With increased panel sizing gives a greater Philips LED output with the added customer option of three super bright LED Light choices (White 4300K+, Warm White 3000K+, Amber 2500K+) The battery bank are lithium L10 designed to be longstanding and withstand Australian climate conditions. LED lighting meeting AST/NZ 1158 standards at P4 category.

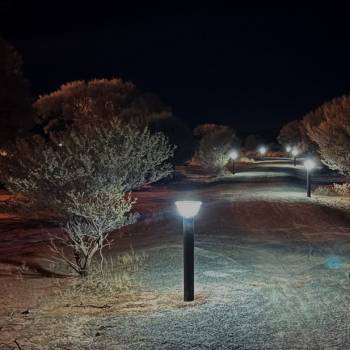

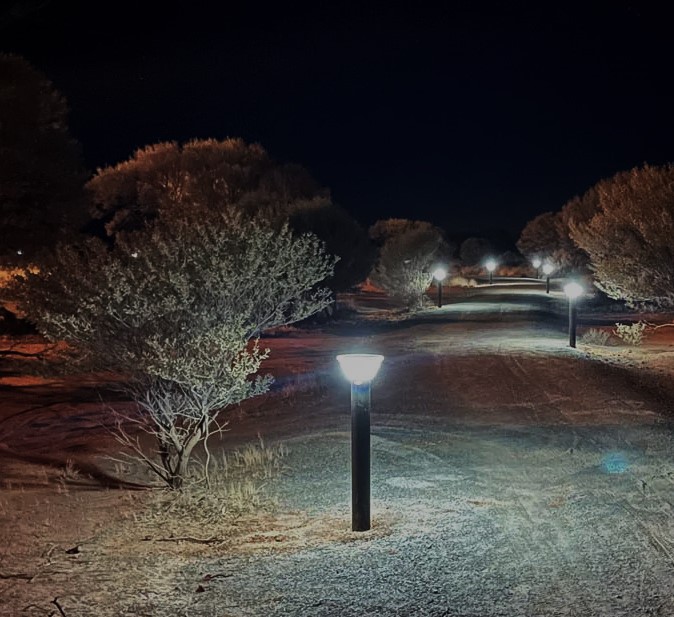

Suitable Site Locations

  • Developments
  • Public pathways
  • Rural tracks
  • Marinas
  • Camp sites
  • Aged care
  • Retirement villages

Specifications

Power Consumption (light)2.5 Watt
Power Generation (solar)6.8 Watt,
Lifetime50,000 hour LED rating Philips Cree
Light Output (max)Asymmetrical Light Distribution: 4300K+ (White Light) / 3000K+ (Warm White) / 2500K+ (Amber Light) Symmetrical Light Distribution: 4300K+ (White Light) / 3000K+ (Warm White) / 2500K+ (Amber Light)
Colour TemperatureCustomer choice of three options (White Light) (Warm Light) (Amber Light) LED output.
Light ControlEMS Management System (electronic management system) auto manage operation.
Battery Rating3.2V 17Ah Cylindrical LiFePo4 L10 LithiumCommercial.
Battery ChemistryLithium-ion Phosphate LiFePO4 (L10).
Battery RuntimeUp to 36 hours.
Recharge Time5-6 hours in daytime
ProtectionIP66 rated, IK10 impact protection
Operating Temperatures-20°C to +60°C
Dimensions1M x 260MM (Dome & Panel Array) x 115MM pole dimension.
MaterialDie-cast aviation grade anodised aluminium body, monocrystalline silicon solar cells with PC Lens (blended panel array) Standard Dulux black satin or custom colour available.
Warranty5 year fitting,
Product IdentifiersPhilips CREE LED, CRI>75, L10 Lithium Phosphate, P4 category lighting standards, 316 security fasteners, marine grade aluminium, Vandal proof IK10 design, customer – three LED lighting options of choice.

Solar Bollard Specifications
IK 10 Vandal Resistant
