Hybrid Solar Street Light

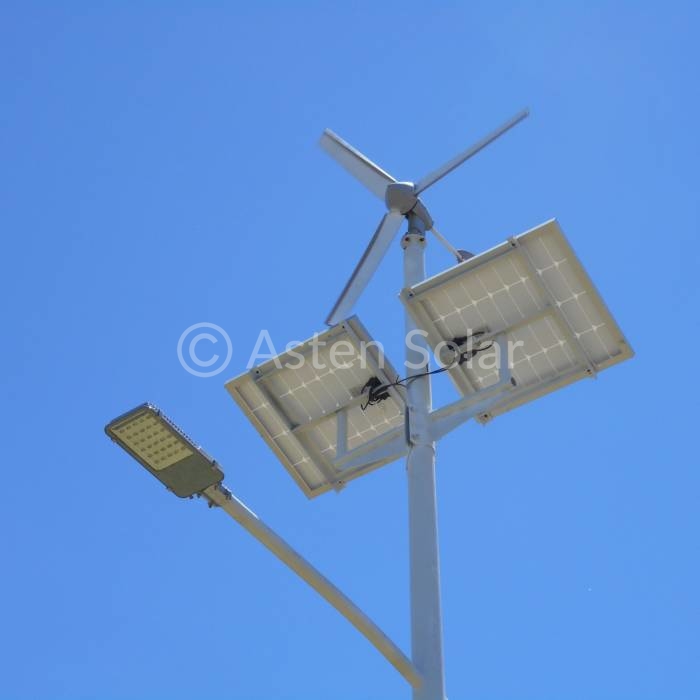

AST 1785

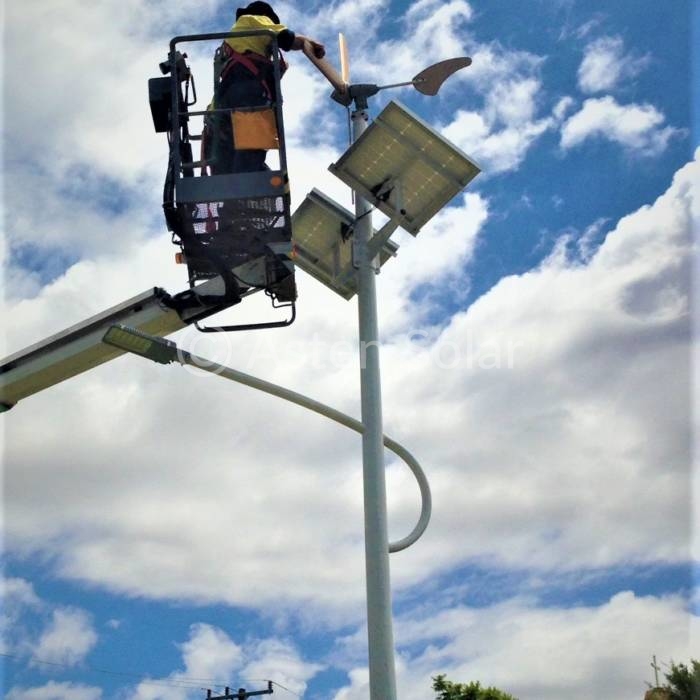

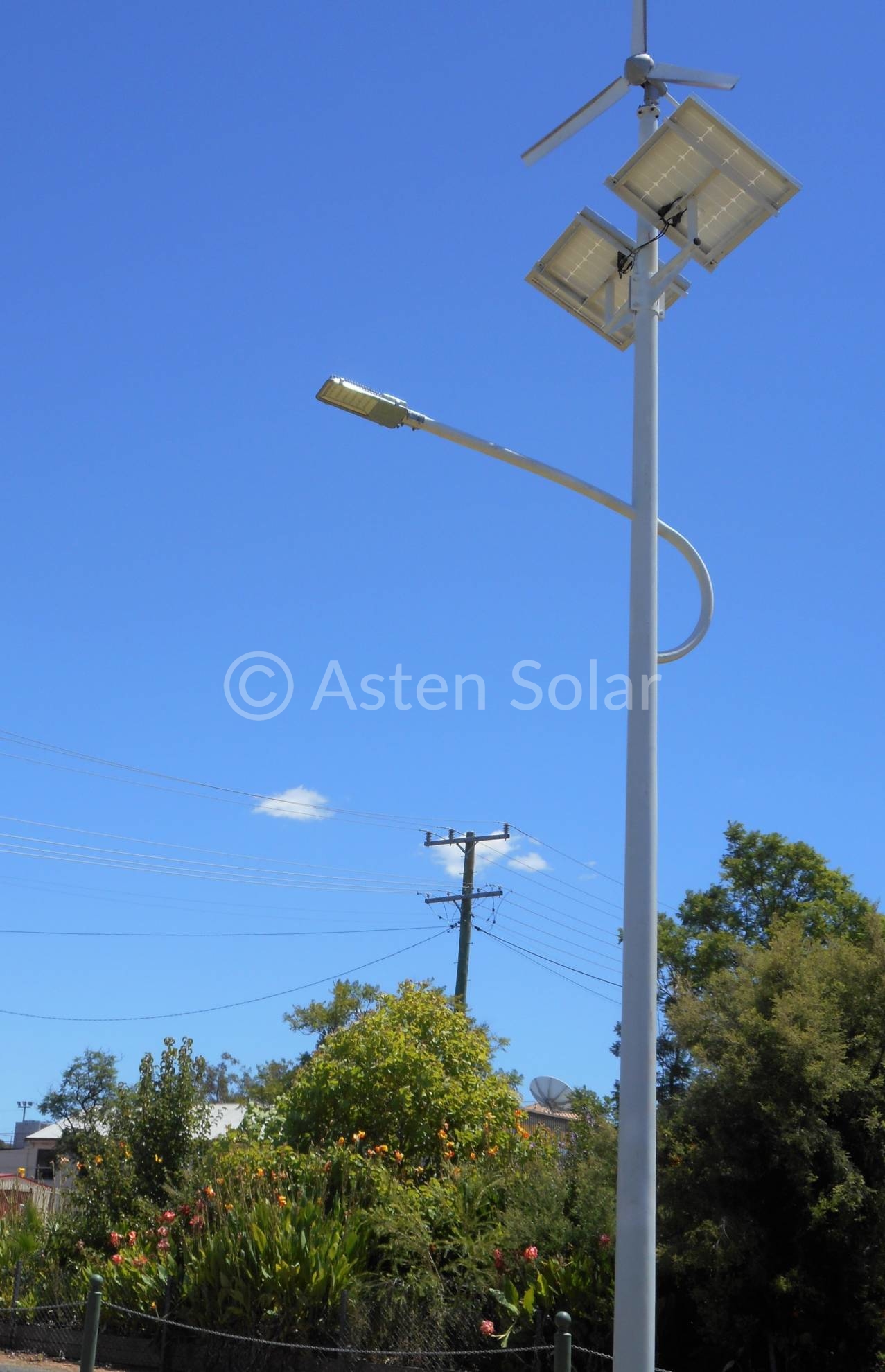

Solar Turbine Installation

Product Information

The Hybrid Solar Street Light: within our LED solar lighting range, the Wind Turbine combined with our advanced Photovoltaic array gives the system a solution for high altitude regions as the solar configuration is combined within two engines harvesting energy via (UV and Wind technology).

Turbine power is consistent throughout night hours allowing continuous energy generation. It is an intelligent stand-alone LED street lighting system allowing electricity to be generated in the most challenging weather conditions.

The AST-1782P is our solar array LED solar lighting system which operates via UV & photovoltaic panel array this system being suitable for warmer climates – within this range it is a standalone solution that can be customised to meet continued lighting suitable for its geographical location.

Both systems have full MPPT remote manage operation and offers significant savings both on installation cost and no ongoing expense of rising utility’s (with Australia now represented in the top 20 for the highest electricity cost in the world). It makes sense to look at the benefits of renewable energy and the immediate return on investment.

Both systems can be configured to meet site location requirements be it Turbine combined with solar or solar array only for 11,200LM or 14,000LM.

Suitable Site Locations

  • Cold climate (sub-zero temperatures)
  • Roadways
  • Roads
  • Port terminals
  • Intersections
  • Parking bays
  • Industrial sites

Specifications

Hybrid Solar Light Specifications

100 Watts

Power Consumption (light)100 Watt
Power Generation (Turbine) Photovoltaic Array (Solar)250 Watt, DC24V with lower speed wind start up, fen design. 90 Watt, DC12V x 2 operational +/-
Lifetime74,000 hour LED rating Philips Cree
Light Output (max) 100W: 14,000 lumens
Colour TemperatureCool White 4000K – 5700K
Light ControlHybrid MPPT controller with Pre-programmed time control (24V)
Lighting ModesSmart drive motion sensor or pre-programmed time-based mode for constant output mode with lighting time function.
Beam PatternIES Type III
Battery Rating130Ah x 2 (all 12.8V+)
Battery ChemistryLithium-ion Phosphate LiFePO4 (L10) (Gel) deep cycle
Recharge Time5-6 hours in daytime (3 days secure back up power)
ProtectionIP66 rated
Operating Temperatures-20°C to +60°C
Bird SpikesAnti perching spikes are designed to protect against “fouling” spikes can be mounted at the highest point of panel array. This ensures that birds are unable to perch on the solar panels and allowing the optimum efficiency.
Warranty5 year fitting warranty
Product IdentifiersCommercial sensor drive, Philips CREE LED, CRI>75, Type III lens, L10 Lithium Phosphate, Sensor Drive or time control operation, Hybrid commercial Charge Controller.

80 Watts

Power Consumption (light)80 Watt
Power Generation (Turbine) Photovoltaic Array (Solar)200 Watt, DC24V with lower speed wind start up, fen design. 75 Watt, DC12V x 2 operational +/-
Lifetime74,000 hour LED rating Philips Cree
Light Output (max) 80W: 11,200 lumens
Colour TemperatureCool White 4000K – 5700K
Light ControlHybrid MPPT controller with Pre-programmed time control (24V)
Lighting ModesSmart drive motion sensor or pre-programmed time-based mode for constant output mode with lighting time function.
Beam PatternIES Type III
Battery Rating120Ah x 2 (all 12.8V+)
Battery ChemistryLithium-ion Phosphate LiFePO4 (L10) (Gel) deep cycle
Recharge Time5-6 hours in daytime (3 days secure back up power)
ProtectionIP66 rated
Operating Temperatures-20°C to +60°C
Bird SpikesAnti perching spikes are designed to protect against “fouling” spikes can be mounted at the highest point of panel array. This ensures that birds are unable to perch on the solar panels and allowing the optimum efficiency.
Warranty5 year fitting warranty
Product IdentifiersCommercial sensor drive, Philips CREE LED, CRI>75, Type III lens, L10 Lithium Phosphate, Sensor Drive or time control operation, Hybrid commercial Charge Controller.
