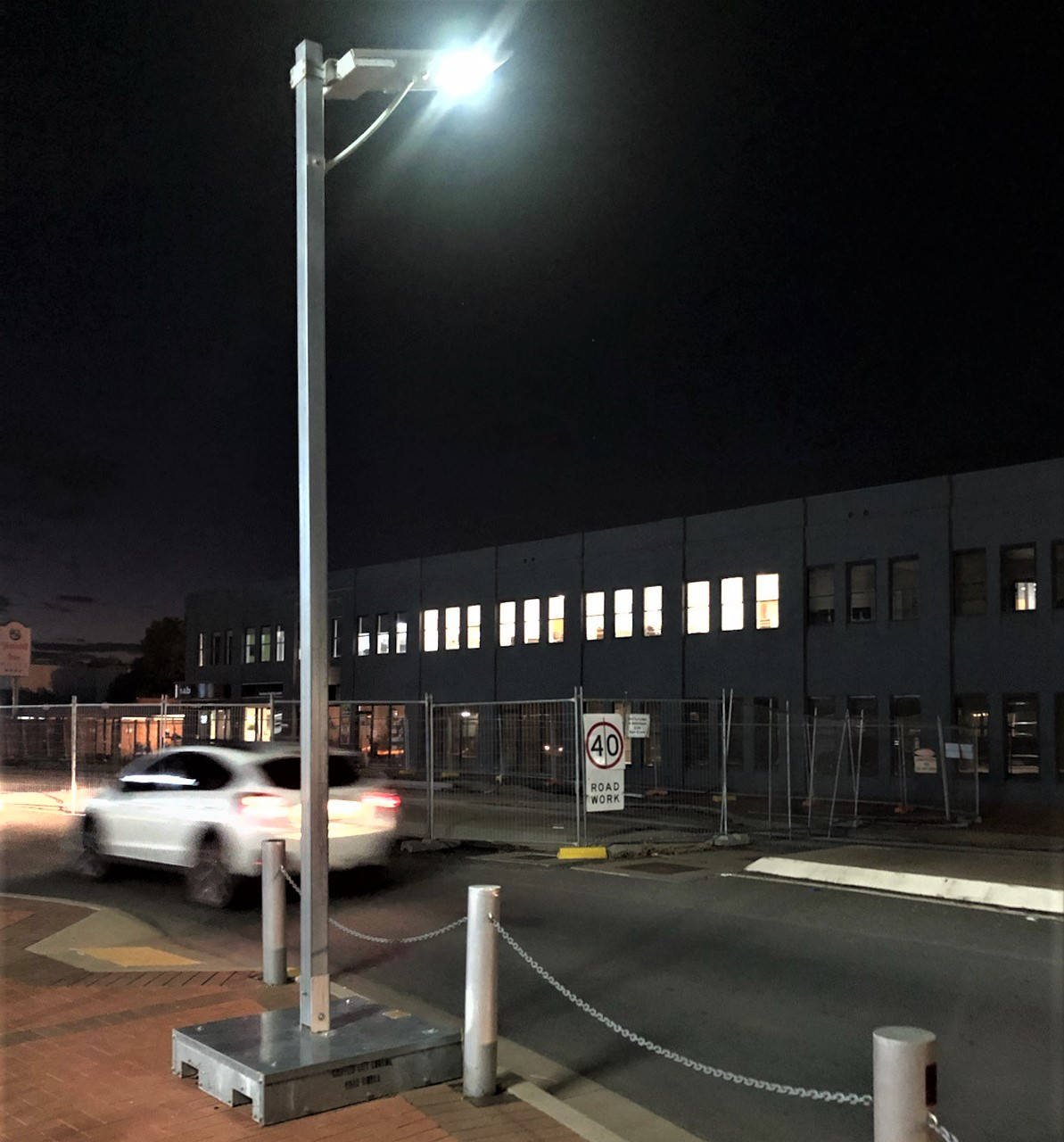

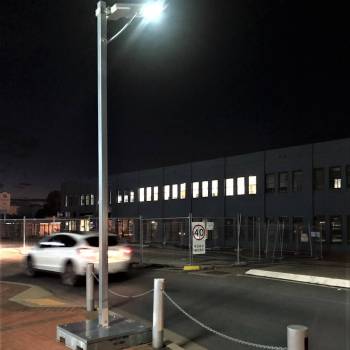

Mobile Solar Light Tower

Mobile Solar Lighting In Griffith 01
Mobile Solar Lighting In Griffith 03

Product Information

The Mobile Solar Lighting Tower is a great alternative to diesel lighting towers, providing the same luminaries without the need of ongoing cost for refuelling and system management. The tower is an environmentally sound lighting solution – with the additional benefits of no fumes or noise.

It is easily moved as required for site locations via a forklift or crane and can be assembled within 10 minutes. The tilting pole is galvanised steel conforming to Australian standards (all components and fabrication is Australian made).

The battery banks are leading edge Lithium L10 designed to withstand Australian climate conditions. LED lighting meeting AST/NZ 1158 standards.

Suitable Site Locations

  • Construction sites
  • Mine sites
  • Depots
  • Events
  • Roadworks


Power Consumption (light)60 Watt
Power Generation (solar)90 Watt,
Lifetime74,000 hour LED rating Philips Cree
Light Output (max)
60W: 8,400 lumens
Colour TemperatureCool White 4000K – 5700K
Light ControlPre-programmed MPPT controller or Pre-programmed time control
Lighting ModesSmart drive motion sensor or pre-programmed time-based mode for constant output mode with lighting time function.
Beam PatternIES Type III
Battery Rating27Ah 42Ah (all 12.8V+)
Battery ChemistryLithium-ion Phosphate LiFePO4 (L10)
Battery RuntimeUp to 38 hours in dim mode via sensor drive operation
Recharge Time5-6 hours in daytime
ProtectionIP66 rated, IK10 impact protection
Operating Temperatures-20°C to +60°C
60W: 1158 mm x 405 mm x 56 mm
Mobile Tower HeightCan be customised / 4.5 – 6.5H
MaterialDie-cast aviation grade aluminium body, monocrystalline silicon solar cells with PC Lens / galvanised pole structure with forklift base and fork openings each side x 2.
Warranty5 year fitting,
Product IdentifiersCommercial sensor drive, Philips CREE LED, CRI>75, Type III lens, L10 Lithium Phosphate, Sensor Drive or time control operation.
