Commercial Sensor Drive Solar Light

Commercial Sensor Drive Solar Light
Commercial Sensor Drive Solar Light 04

Product Information

The Commercial Sensor Drive Solar Light is a cost effective smart option to meet your lighting needs.

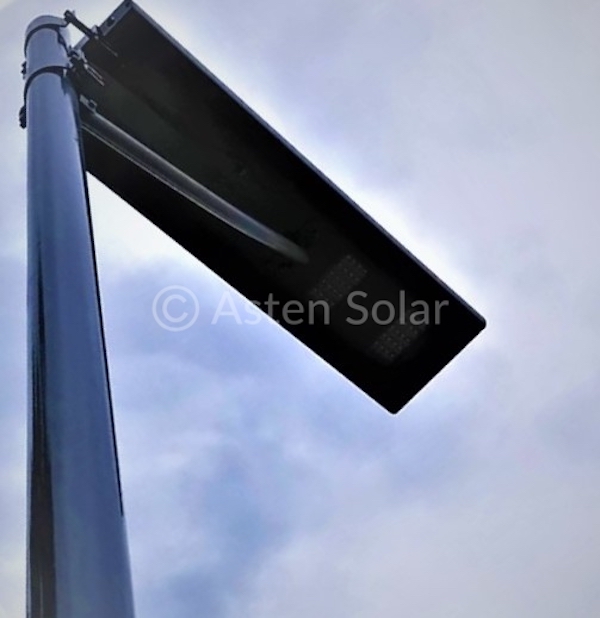

It can be mounted onto an existing light pole and convert mains powered street lighting into a commercial off-grid lighting system or can be tailored to have poles designed for the required project.

The system allows to be installed anywhere in remote off grid regions to inner city suburban locations.

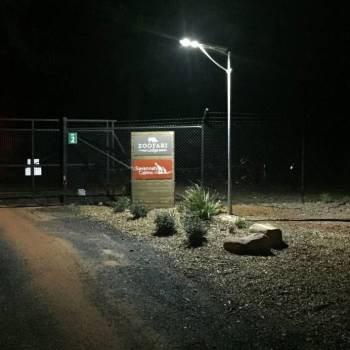

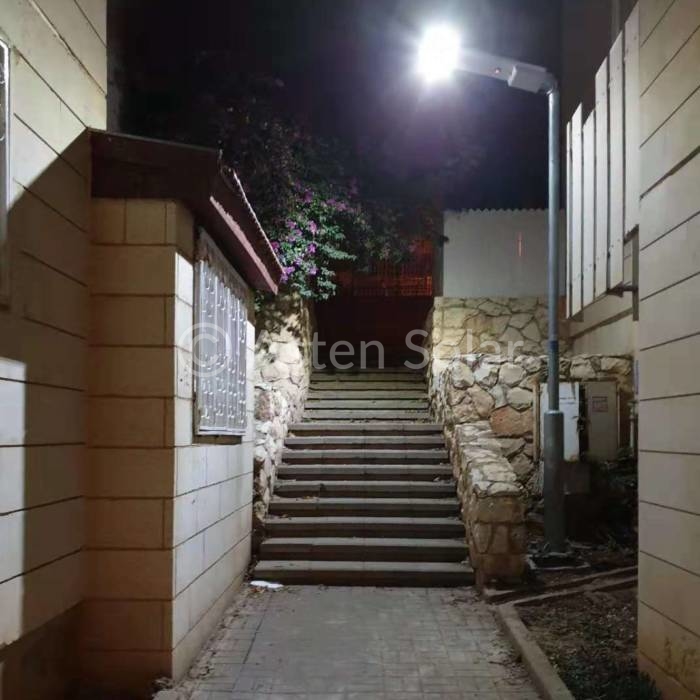

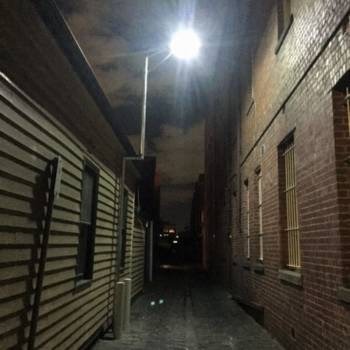

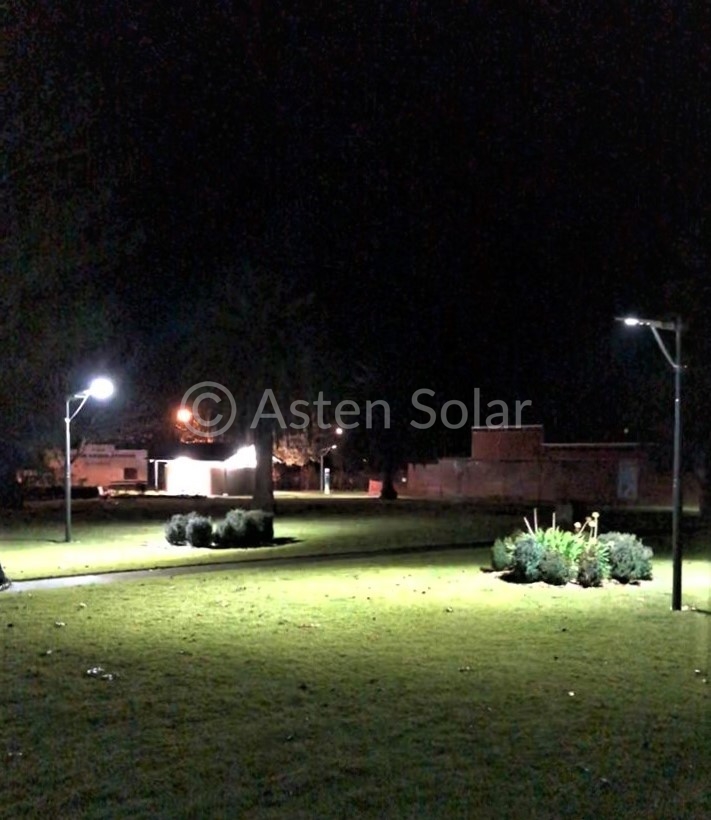

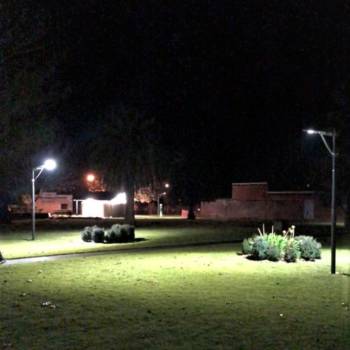

It is perfect for, car parks, pathways, jetties, and for general public safety lighting. Components being the highest quality as per the specifications below, designed in Australia to meet our most demanding climate conditions.

Suitable Site Locations

  • Council parks
  • Public walkways
  • Parking bays
  • Construction sites
  • Mine sites
  • Government depots
  • Caravan parks
  • Jetties
  • School and university campuses

Specifications

Power Consumption (light)40 Watt, 60 Watt
Power Generation (solar)60 Watt, 90 Watt,
Lifetime74,000 hour LED rating Philips Cree
Light Output (max)40W: 5600 lumens
60W: 8400 lumens
Colour TemperatureCool White 4000K – 5700K
Light ControlPre-programmed MPPT controller or Pre-programmed time control
Lighting ModesSmart drive motion sensor or pre-programmed time-based mode for constant output mode with lighting time function.
Beam PatternIES Type III
Battery Rating27Ah 42Ah (all 12.8V+)
Battery ChemistryLithium-ion Phosphate LiFePO4 (L10)
Battery RuntimeUp to 38 hours in dim mode via sensor drive operation
Recharge Time5-6 hours in daytime
ProtectionIP66 rated, IK10 impact protection
Operating Temperatures-20°C to +60°C
Dimensions40W: 1158 mm x 281 mm x 56 mm
60W: 1158 mm x 405 mm x 56 mm
Weight40W = 17.5 kg, 60W = 22 kg
MaterialDie-cast aviation grade aluminium body, monocrystalline silicon solar cells with PC Lens.
InstallationOption to self-install with provided accessories through Asten Solar install guide or Asten Solar to do project works to completion.
Warranty5 year fitting.
Product IdentifiersCommercial sensor drive, Philips CREE LED, CRI>75, Type III lens, L10 Lithium Phosphate, Sensor Drive or time control operation.
