Solar Bollards

Commercial Solar Bollard Lights – IK10 Vandal Resistant Design

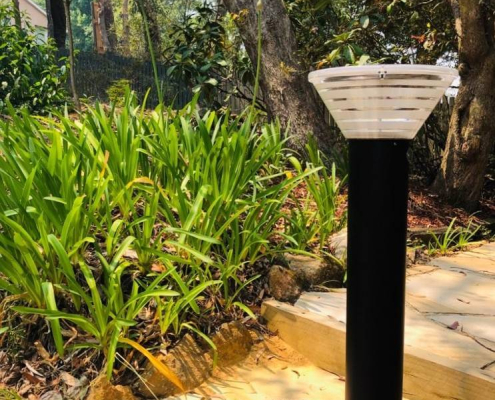

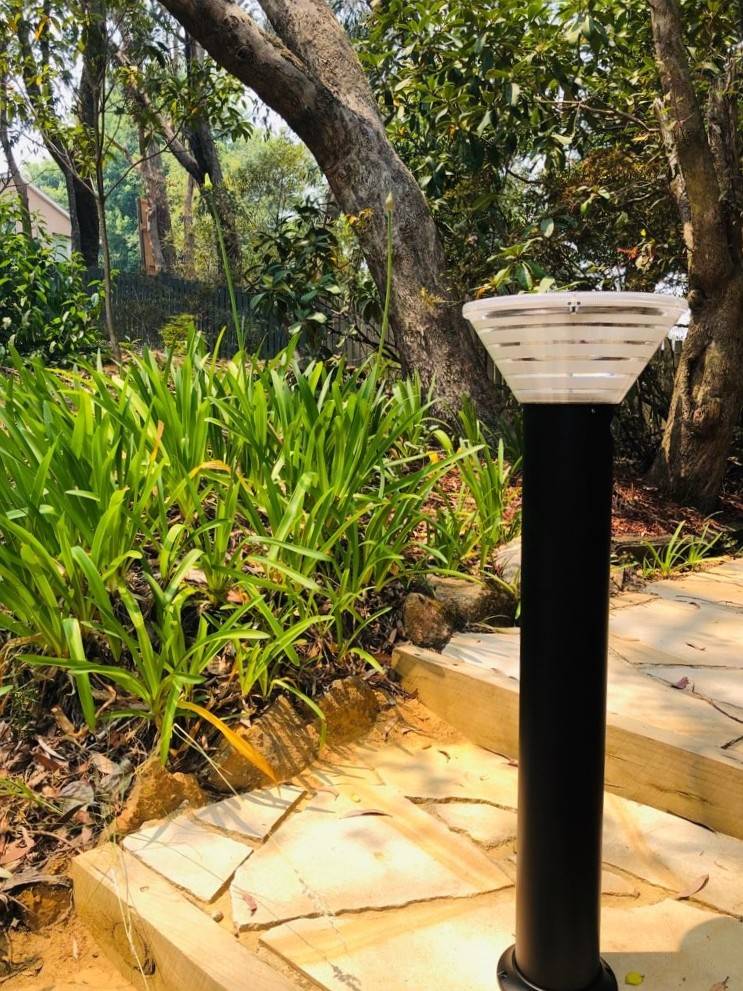

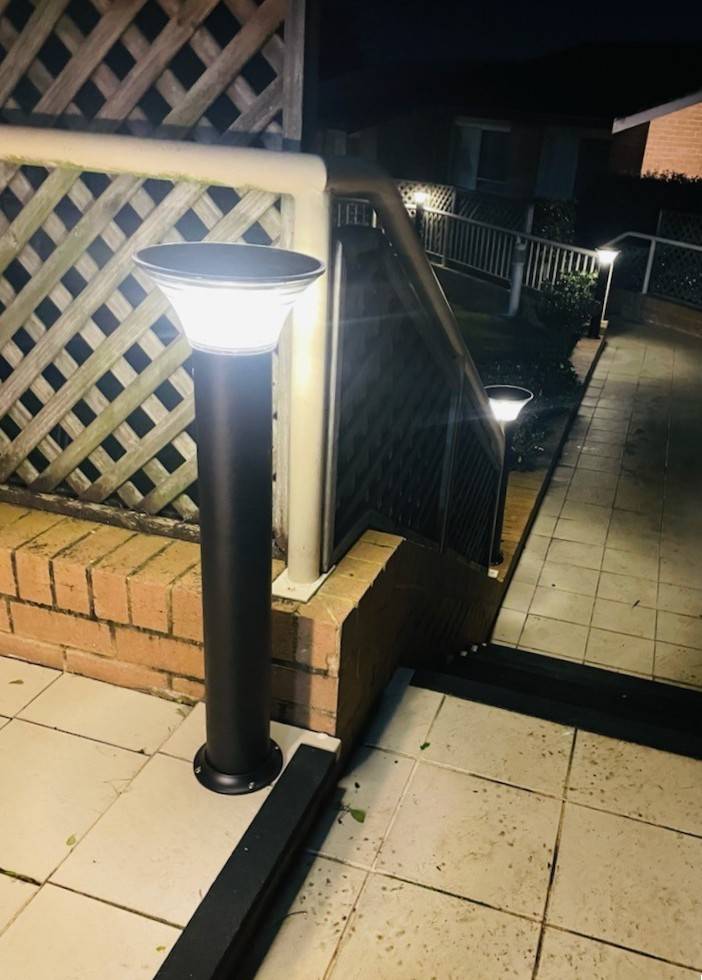

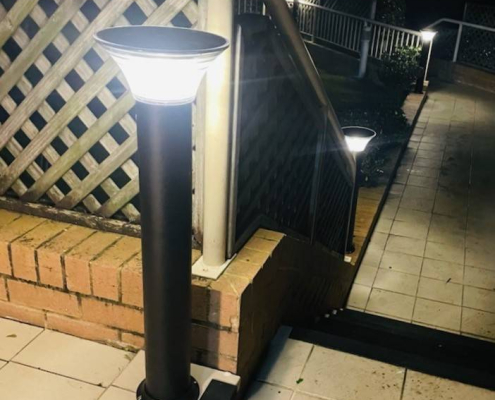

The Solar Bollard AST-1660 is leading edge design, making it a standalone commercial-grade bollard with many key features allowing for huge savings on installation for architectural and commercial pathway / walkway applications.

The protective dome is designed to withstand both vandalism and extreme weather conditions. The solar panel array is a blended design – enabling the AST-1660 to fit within any surrounds aesthetically. It is a smart lighting solution – at 38% less cost compared to grid connected systems.

The increased panel sizing gives a greater performance with our Philips LED output with the added customer option of three super bright LED Light choices (White 4300K+, Warm White 3000K+, Amber 2500K+).

The battery bank is leading, Lithium US (L10) designed to be longstanding and withstand Australian climate conditions. LED lighting meeting AST/NZ 1158 standards at P4 category.

Applications

Developments

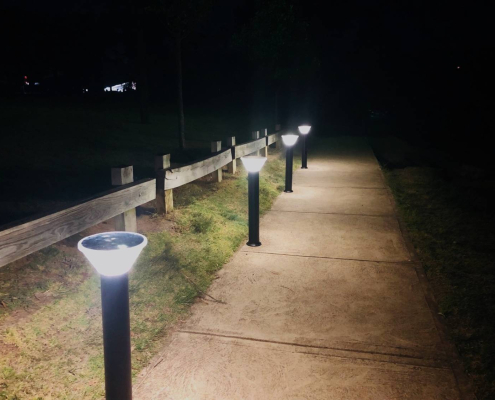

Public pathways
Rural tracks

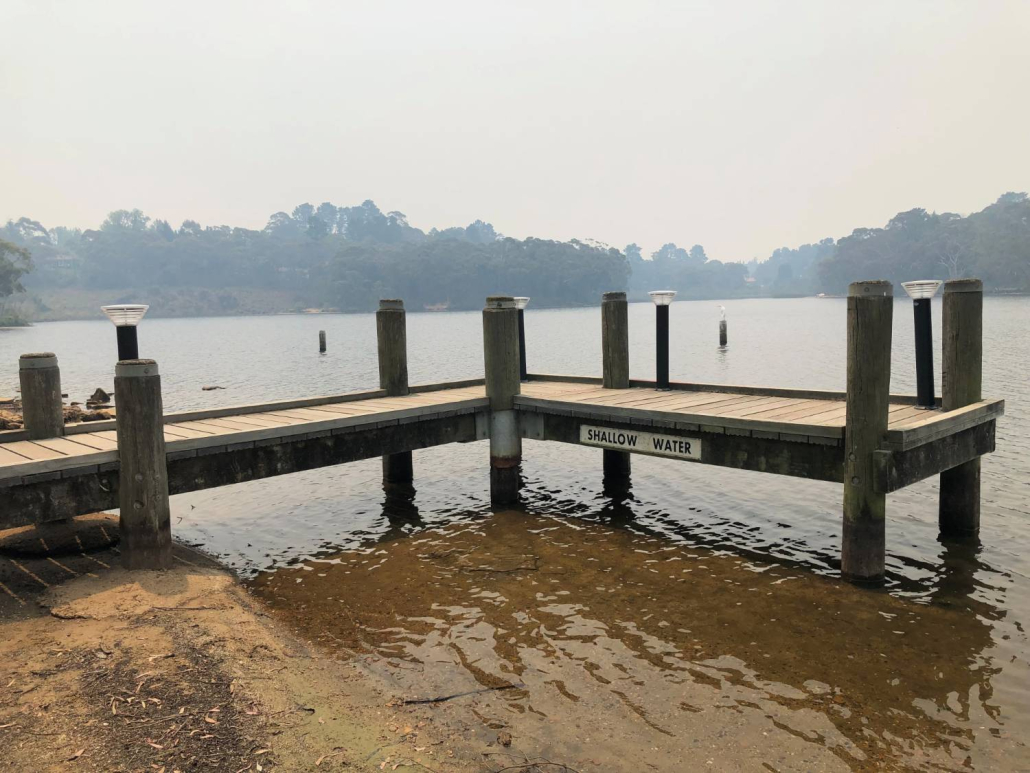

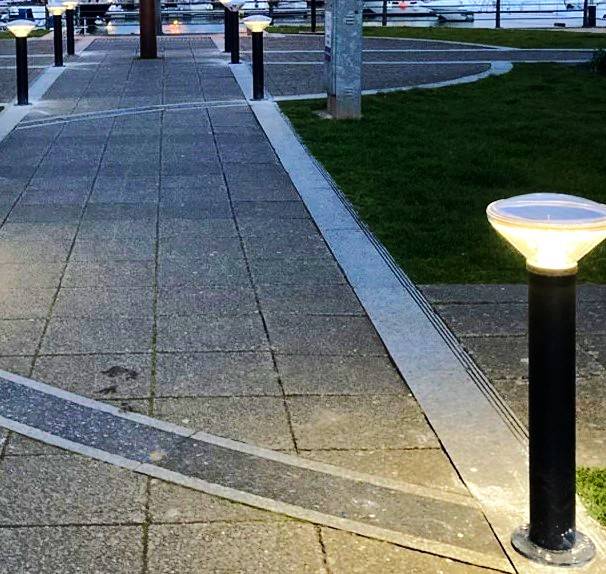

Marinas
Camp sites
Aged care

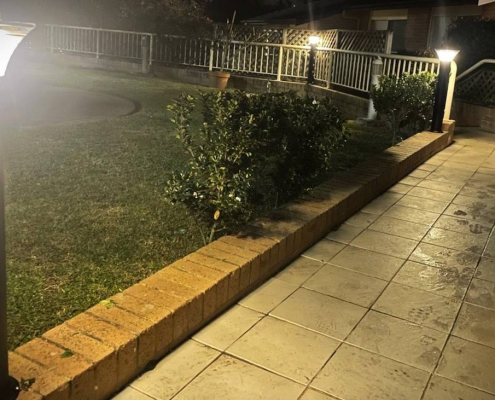

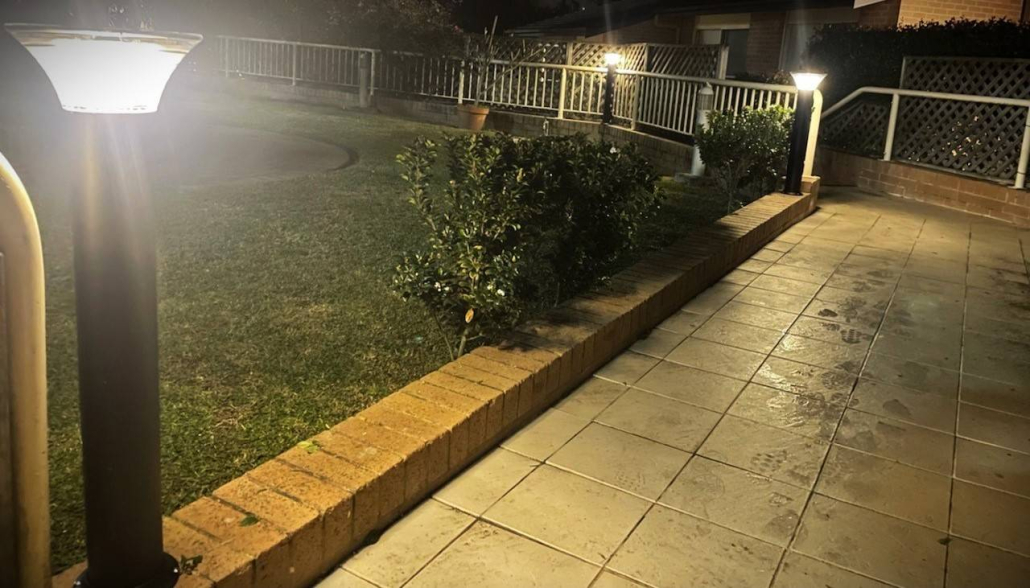

Retirement villages
Caravan Parks
Driving entry points

Enquire about this product

Enquire now

Specifications

Power Consumption (light)	2.5 Watt
Power Generation (solar)	6.8 Watt,
Lifetime	50,000 hour LED rating Philips Cree
Light Output (max)	Asymmetrical Light Distribution: 4300K+ (White Light) / 3000K+ (Warm White) / 2500K+ (Amber Light) Symmetrical Light Distribution: 4300K+ (White Light) / 3000K+ (Warm White) / 2500K+ (Amber Light)
Colour Temperature	Customer choice of three options (White Light) (Warm White) (Amber Light) LED output.
Light Control	EMS Management System (electronic management system) auto manage operation.
Battery Rating	3.2V 17Ah Cylindrical LiFePo4 L10 LithiumCommercial.
Battery Chemistry	Lithium-ion Phosphate LiFePO4 (L10).
Battery Runtime	Up to 36 hours.
Recharge Time	5-6 hours in daytime
Protection	IP66 rated, IK10 impact protection
Operating Temperatures	-20°C to +60°C
Dimensions	1M x 260MM (Dome & Panel Array) x 115MM pole dimension.
Material	Die-cast aviation grade anodised aluminium body, monocrystalline silicon solar cells with PC Lens (blended panel array) Standard Dulux black satin or custom colour available.
Warranty	5 year fitting
Product Identifiers	Philips CREE LED, CRI>75, L10 Lithium Phosphate, P4 category lighting standards, 316 security fasteners, marine grade aluminium, Vandal proof IK10 design, customer – three LED lighting options of choice.
