Invictus Sensor Drive Solar Light
Solar Street Light & Public Area Lighting With Sensor & Timer
The Invictus AST-60 smart lighting solution is engineered for street lighting and public area illumination with advanced sensor and timer capabilities
Versatile Installation Options
The Invictus Commercial Sensor Drive Solar Light offers exceptional flexibility for municipal and organisational lighting projects. The system can be seamlessly mounted onto existing light poles, converting traditional mains-powered street lighting into a commercial off-grid solar lighting system. Leading edge Lithium LiFeP04 US (L10) battery banks power this lighting range. Custom poles can also be designed and manufactured to meet specific project requirements and site conditions.
Suitable for Many Locations

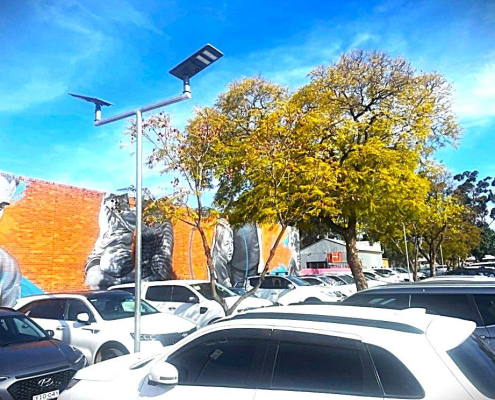

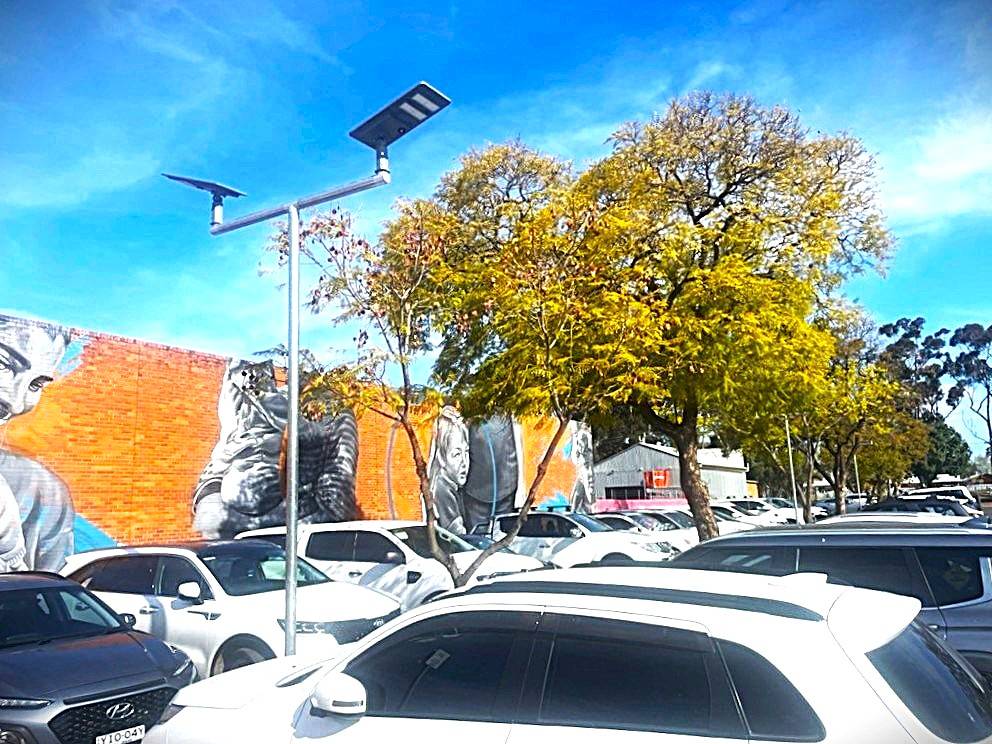

This robust lighting system delivers consistent performance across diverse environments, from remote off-grid regional areas to inner-city suburban locations. The versatile design ensures reliable operation regardless of existing infrastructure limitations or power availability. Meeting AS/NZ 1158.3.1.2020, it is perfect for car parks, pathways, jetties, and for general public safety lighting. Components are the highest quality as per the specifications below. Designed in Australia to meet our most demanding climate conditions.
Applications
The Invictus AST-60 Solar Light is ideally suited for:

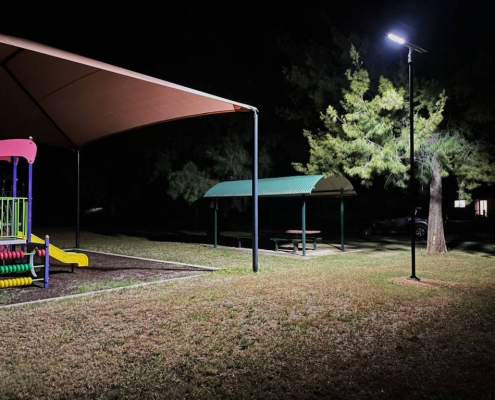

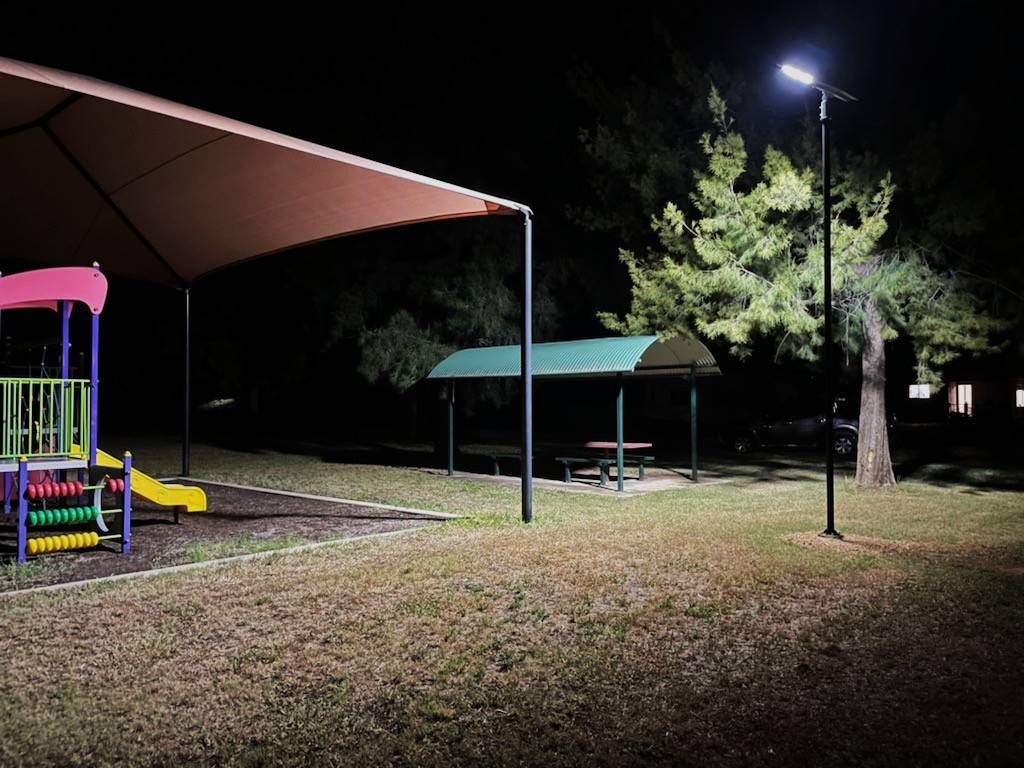

- Public parks

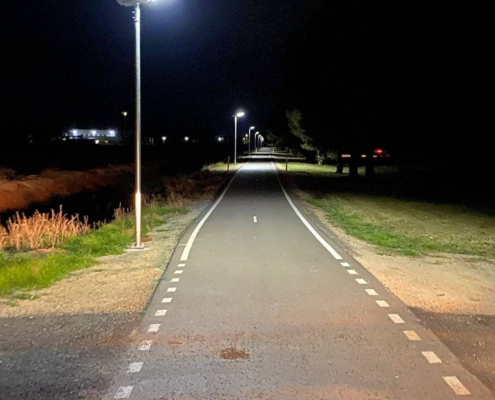

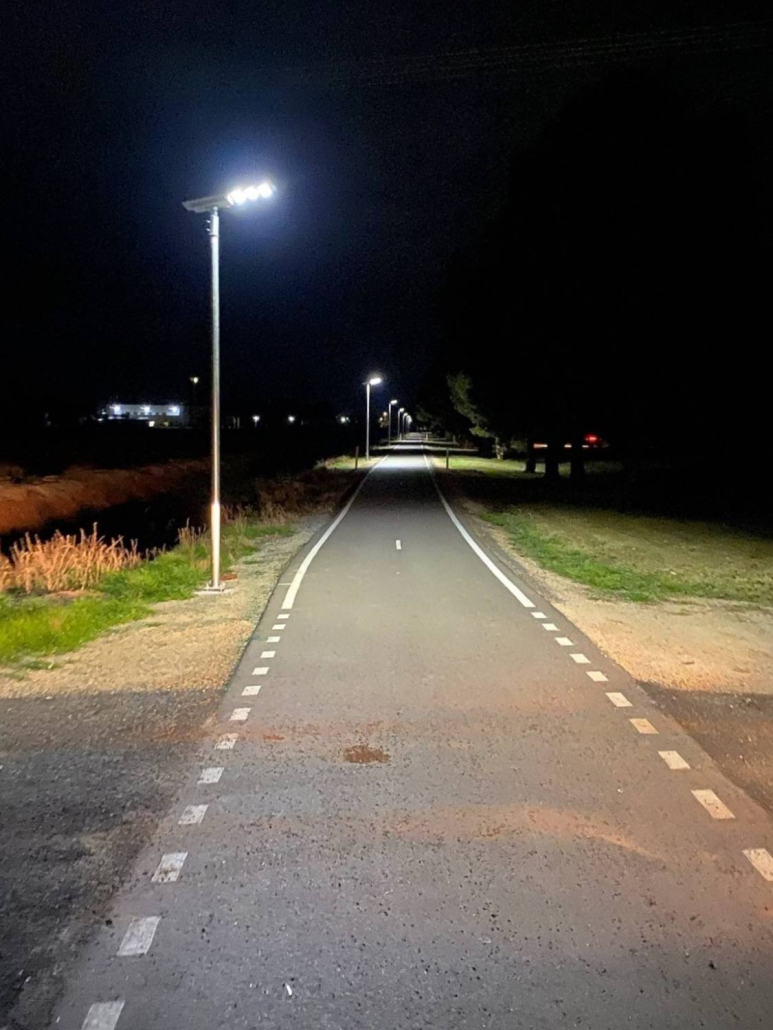

- Public walkways
- Construction sites
- Mine sites
- Government depots
- Caravan parks

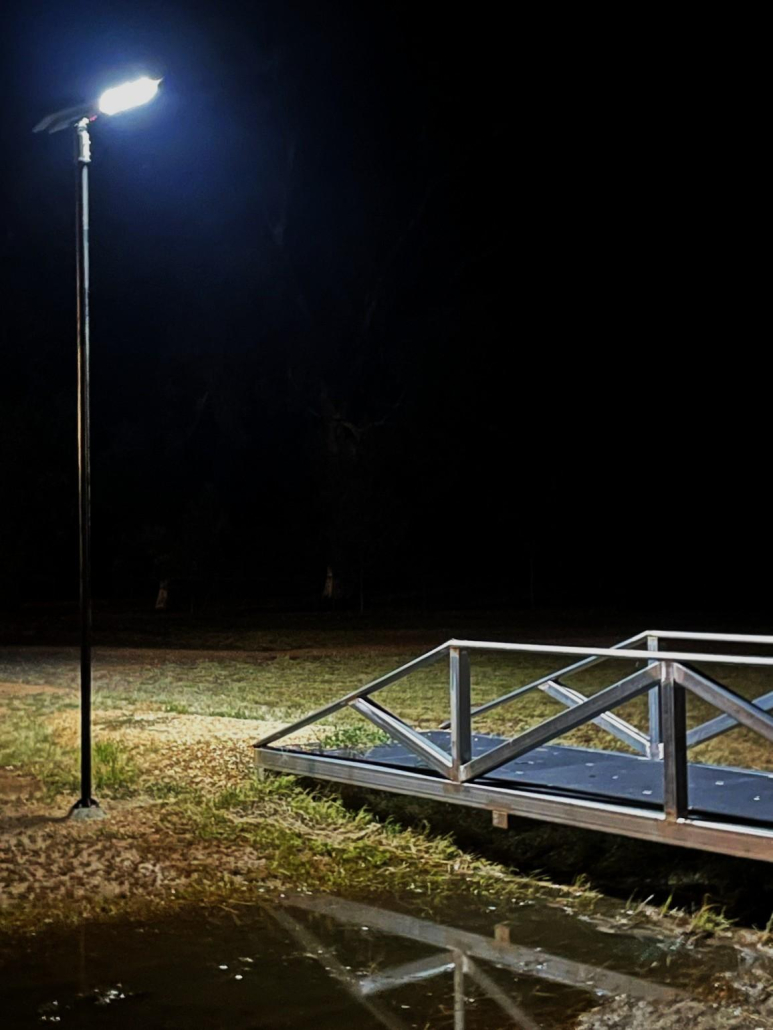

- Jetties
Enquire about this product
Specifications
| Power Consumption (light) | 40 Watt, 60 Watt |
| Power Generation (solar) | 60 Watt, 90 Watt, |
| Lifetime | 74,000 hour LED rating Philips Cree |
| Light Output (max) | 40W: 5600 lumens 60W: 8400 lumens |
| Colour Temperature | Cool White 4000K – 5700K |
| Light Control | Pre-programmed MPPT controller or Pre-programmed time control |
| Lighting Modes | Smart drive motion sensor or pre-programmed time-based mode for constant output mode with lighting time function. |
| Beam Pattern | IES Type III |
| Battery Rating | 27Ah – 42Ah (all 12.8V+) |
| Battery Chemistry | Lithium-ion Phosphate LiFePO4 (L10) |
| Battery Runtime | Up to 38 hours in dim mode via sensor drive operation |
| Recharge Time | 5-6 hours in daytime |
| Protection | IP66 rated, IK10 impact protection |
| Operating Temperatures | -20°C to +60°C |
| Dimensions | 40W: 1158 mm x 281 mm x 56 mm 60W: 1158 mm x 405 mm x 56 mm |
| Weight | 40W = 17.5 kg, 60W = 22 kg |
| Material | Die-cast aviation grade aluminium body, monocrystalline silicon solar cells with PC Lens. |
