Plexus Solar Lighting System
The Fully Autonomous Plexus Solar Lighting System
The Plexus system with its pole-mounted panel array is an outstanding choice if you need a solar lighting system that can be installed in a high end development or difficult geographical locations.
The Plexus Solar Lighting System is a high-tech, stand-alone solar-powered lighting system with MPPT controlled lighting. The cylinder-designed solar panel is leading edge within the industry and brings cost factors down on installation for difficult sites.
In the case of cloudy weather or indirect sunlight, the unique light post generates the required amount of energy due to its circular design, 24/7. This system also has the driver power from our leading-edge US (L10) Lithium LiFePO4 battery banks.
Applications
- Hill sites
- Mountainous areas
- Roundabouts
- Property developments
- Public parks
- Walkways
- Parking areas
- Mine sites
- Depots
- Caravan parks
- School playgrounds
- Housing developments
- University grounds
Enquire about this product
Specifications
| Power Consumption (light) | 40 Watt, 120Watt |
| Power Generation (solar) | 60 Watt, 160 Watt, PLEXUS – Pole panel array. |
| Lifetime | 74,000 hour LED rating Philips Cree |
| Light Output (max) | 40W: 5,600 lumens120W: 16,800 lumens |
| Colour Temperature | Cool White 4000K – 5700K |
| Light Control | Pre-programmed MPPT controller or Pre-programmed time control |
| Lighting Modes | Smart drive motion sensor or pre-programmed time-based mode for constant output mode with lighting time function. |
| Beam Pattern | IES Type III |
| Battery Rating | 40W 27Ah (12.8V+)120W 36Ah (25.6V+) |
| Battery Chemistry | Lithium-ion Phosphate LiFePO4 (L10) |
| Recharge Time | 4-5 hours in daytime (quick charge MPPT operation) |
| Protection | IP66 rated, IK10 impact protection |
| Operating Temperatures | -40°C to +85°C |

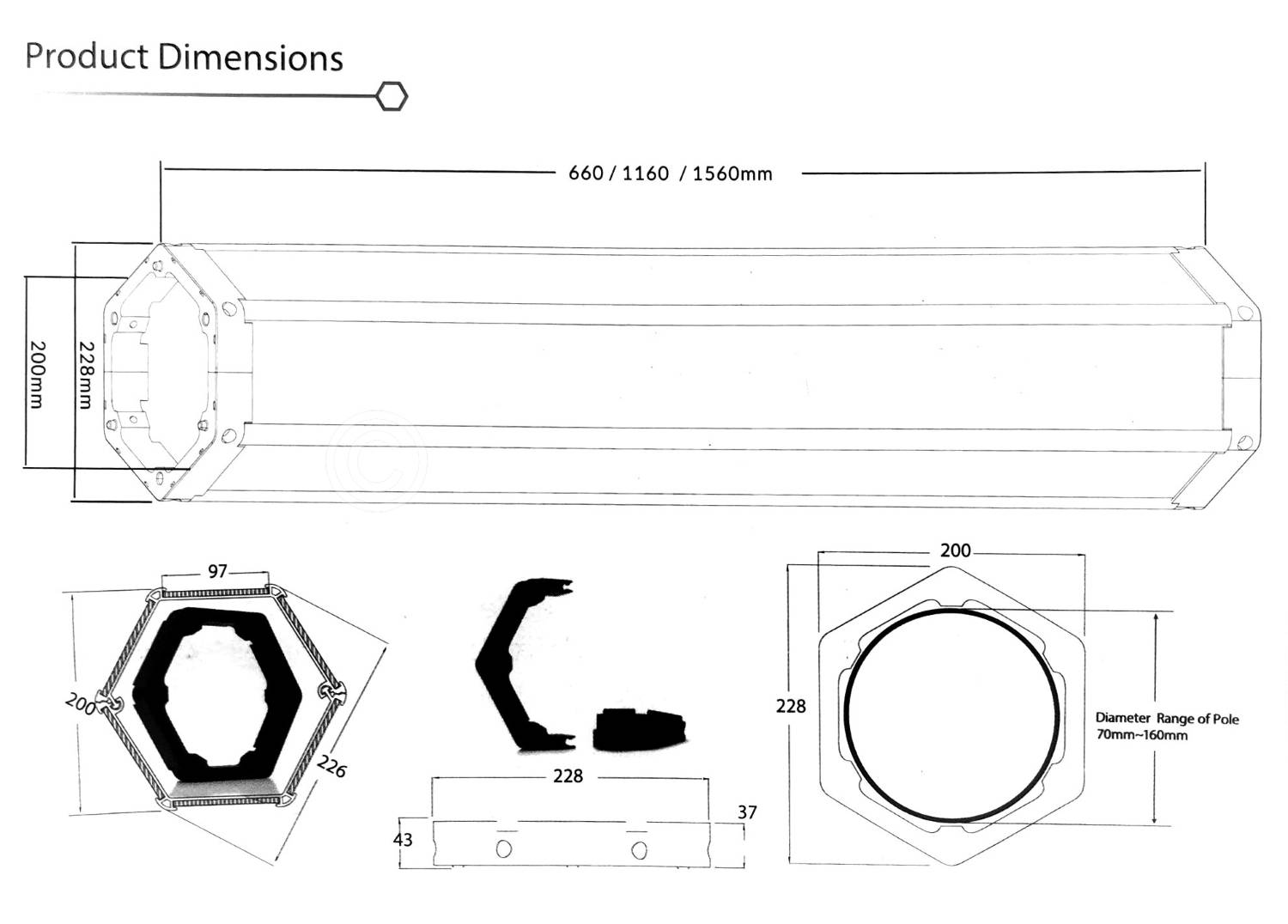

| Dimensions | 40W: 200 x 228 x 1160MM x 2 (pole height 3.8M – 4.2M) 120W: 200 x 228 x 1560MM x 4 (pole height 6.5M – 7.5M) |
| Material | Die-cast aviation grade aluminium body, monocrystalline silicon solar cells with PC Lens. This panel array (with engineered fixed pole design – panels are Photovoltaic hex design with tempered glass and plastic EVA film). |
| Warranty | 5 year fitting. |
| Product Identifiers | Commercial sensor drive, Philips CREE LED, CRI>75, Type III lens, L10 Lithium Phosphate, Sensor Drive or time control operation – dusk to dawn |
